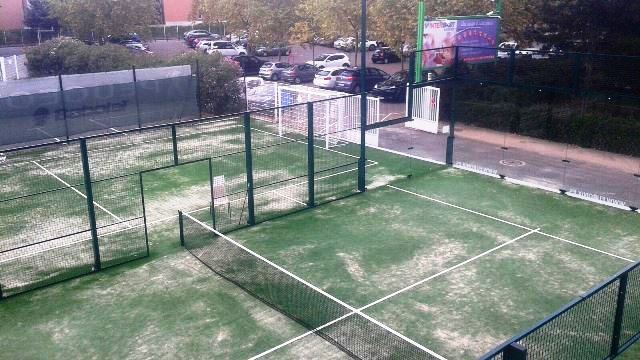

Padel court installation Euroglassvision – EPAD004


The “EUROGLASSVISION” padel court model designed and developed by Euronix has been elaborated for the practicing of this sport including at the highest level following the corresponding norms and regulations (NIDE 2004 Padel), regulations and norms of the F.E.P. (Spanish Padel Federation) and structural calculations based on the official Technical Building Code (TBC).

The main structure of the court is made of 120x60x3mm laminated / hot rolled steel profiles with quality S-275-JR and S-235-JR.

The structural system is composed of 18 support posts, each of which is resting on an individual ground socket plate and with reinforcing support plates.

The height of the posts vary between 3,4 and 6 meters and are equipped with angle profiles and corresponding fixing plates for the she secure tightening of the surrounding closure walls composed of either tempered glass or steel framed wire mesh.

The backgrounds of the court are made with a structure specifically designed for offering a fullpanoramic view (without posts in the backgrounds; only post in the corners).  Glasses are fixed to the ground with reinforced steel plates and on the upper side to the upper beam. This system gives a robust strength to the whole court.
