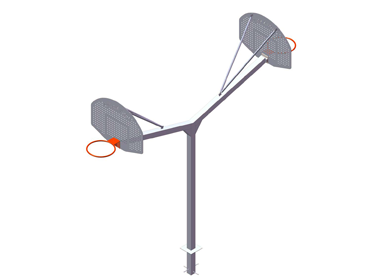

The EUROSCHOOL DOUBLE BASKET is manufactured according to regulations and is designed to be installed between contiguous basketball courts without the need to install two independent baskets, and can be placed on any type of external surface.

Structure

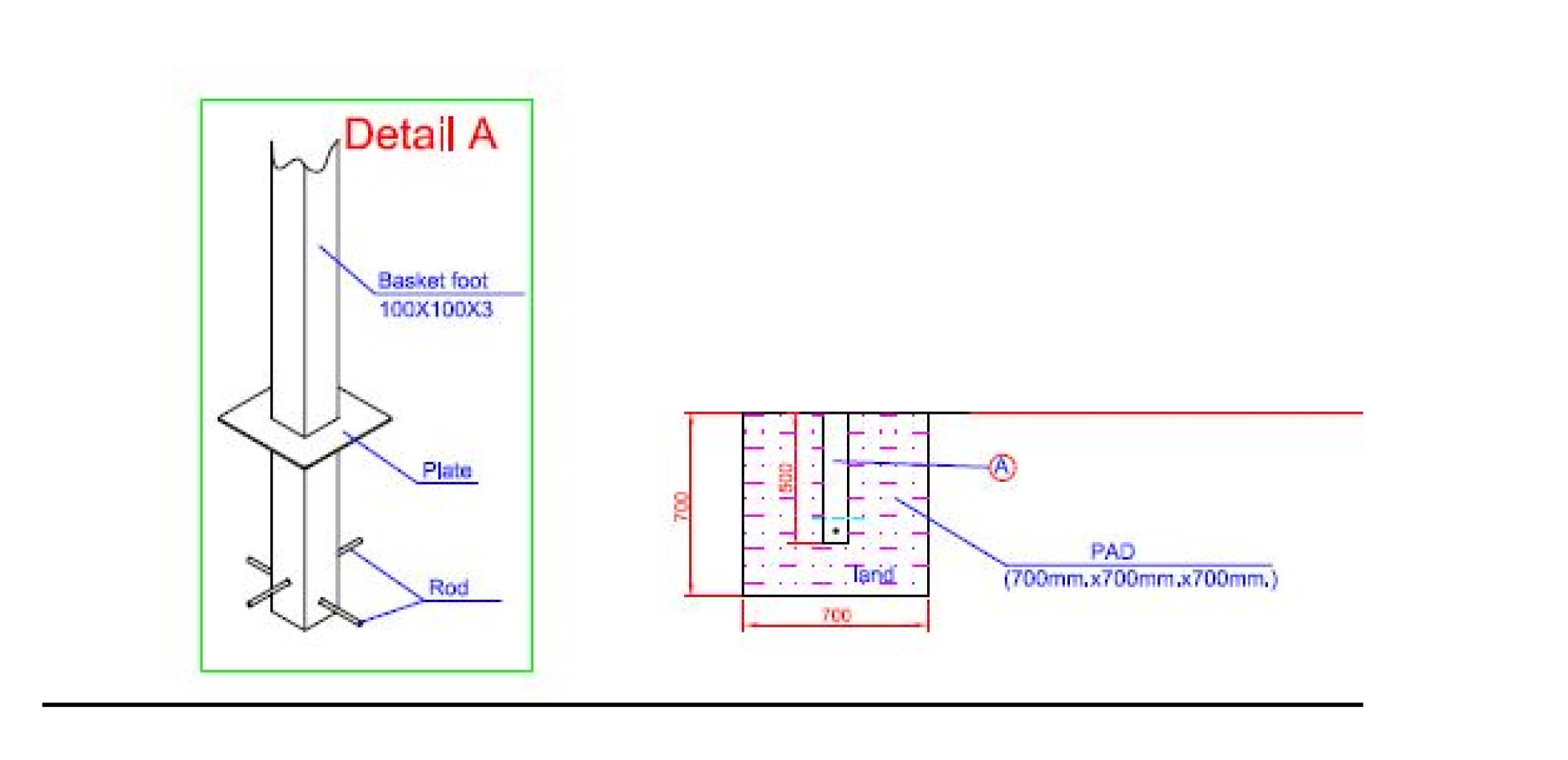

It is mainly composed of three square profiles of 100x100x3. The foot of the basket is fixed to the ground by means of a plate and 4 reinforcement set square.

The plate is bolted to the basket anchorage allowing the basket to be fixed and assuring the stability and rigidity of the structure. Screws supplied by Euronix.

The arms of the basket are joined to the foot by means of a bolted joint, embracing the foot, thus allowing height adjustment and increasing the strength of the joint.

The basket arms are attached to the foot by means of a bolted joint, embracing the base, allowing for height adjustment and increasing the strength of the joint.

Frame stabilizer system

Basket frames are completely stabilized by two stiffeners (each one) made up of two telescopic tubes that connect the profile of the structure with the frame, being adjusted to guarantee 100% straightness of the board,obtaining the desired perpendicularity of play with respect to the ground.

Basket Frames

Basket frames meet the dimensions of 1200mm.x 900mm, according to regulations. They
are connected to the basket arms by means of a bolted connection.

Two angles are welded on the back of the frame to allow the stiffeners to be screwed
together.

In addition, the basket frames are fitted with fully standardized net rings.

Materials:

• Profiles, plates and ring are made of steel S235 JR and S275 JR.
• Zinc plated screws (Zn) Quality 8.8

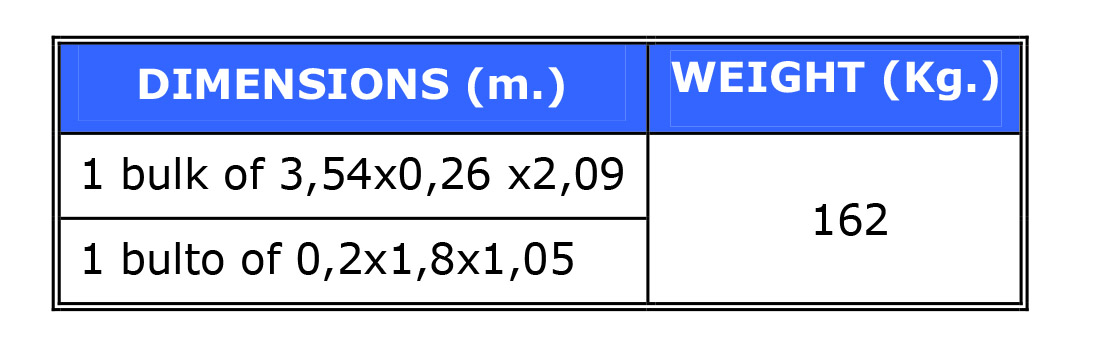

Dimensions:
